Kick Start Conversion (DTRE)



  • Kick Start Conversion

    This is a tutorial for future reference for anyone who is thinking of or is going to carry out a kick start conversion for their DT125RE. This may also help if you are going to dismantle the clutch to replace/inspect or repair. It may also help if you wish to replace the kick start or idle gear.

    Required parts for installation:

    • Kick Start Mechanism
    • Idle Gear
    • 2 X Circlips
    • 2 X Thrust washers
    • Kick start Lever
    • Nut (outer nut to secure lever)
    • Oil Seal

    If you cannot find the Kick start complete or are looking for parts then here is a list of the parts that comprise of the kick start mechanism:

    1. Kickstart Shaft
    2. Friction Clip
    3. Kickstart Pinion
    4. Washer
    5. Return Spring
    6. Spring Guide

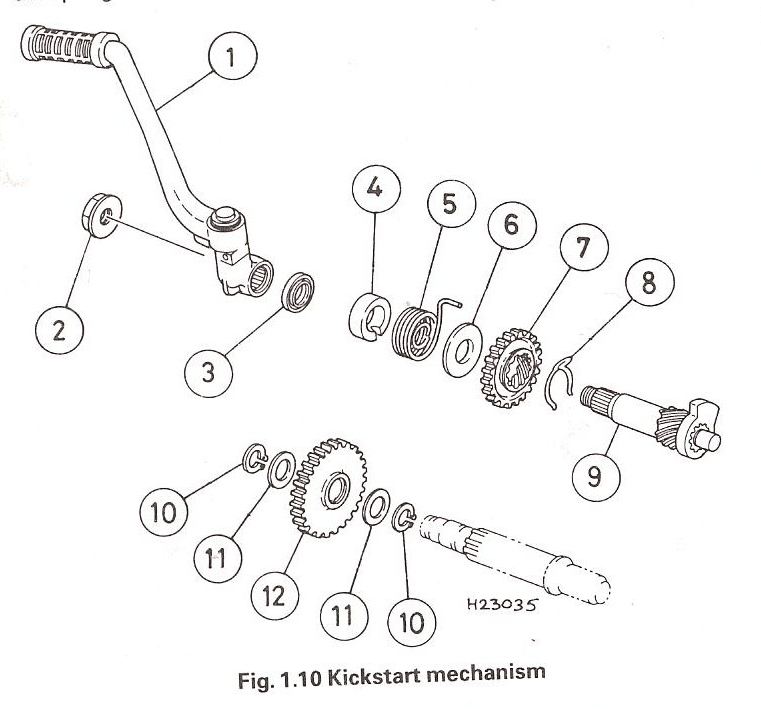

    See Haynes Manual diagram from setup of the kickstart mechaism
    0_1502726265125_Kick Start Mechanism Diagram.png

    You may find that you may require a tool to take the nut off the clutch as the hardest part is removing the clutch to insert the Idle gear. It helps to have an assistant at this point however I was able to remove this bolt on my own using a homemade device.

    NORFE recommends the use of this the clutch removal tool:

    Ebay:

    Search-
    CLUTCH HOLDING TOOL

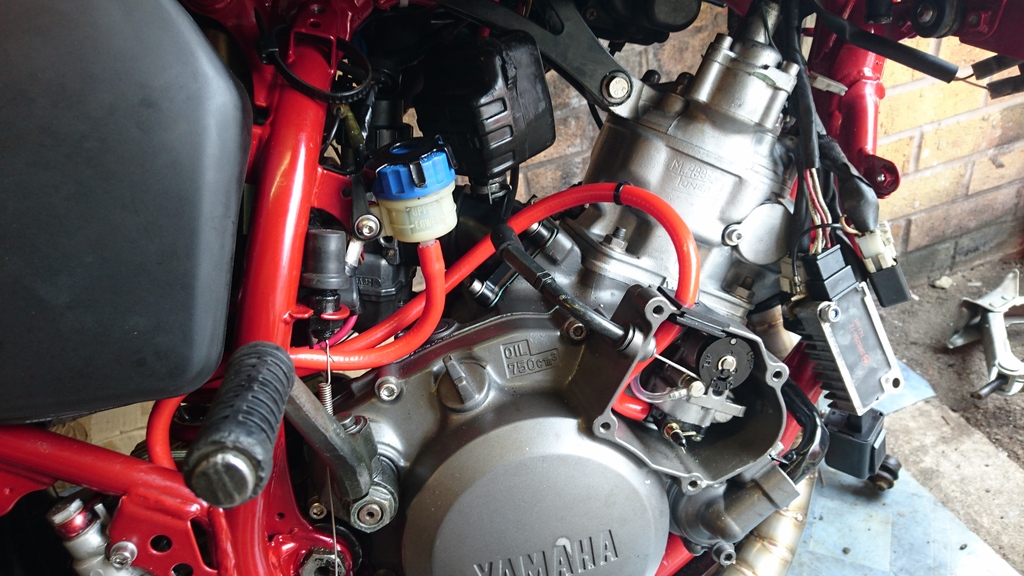

    I would say that this can be a fairly easy job to do yourself however this is a guide for interest and help should you need it and I am not responsible for your actions. When it's all done it will look like so...


    To start!

    • Put the bike into sixth gear

    • Remove fairing covering expansion bottle

    • Remove seat

    • Remove petrol tank

    • Remove exhaust

    To enable the gearbox casing to be removed it helps to remove the rear brake pedal. To do this first remove the return spring. This can be done by inserting a flat head screw driver and carefully leveraging the spring out of place. Remove the bolt holding the brake pedal in place. This bolt should have a split pin on the other side. This will need to be removed. From beneath the master cylinder remove the dowel holding it in place. This is secured by a split pin.

    If you are having trouble removing any bolts or items then it may help to first heat the item up by using a heat gun. If a heat gun is not available then you could try using a hair dryer. I highly recommend using an impact driver to remove stubborn bolts.

    The brake pedal can now be removed.

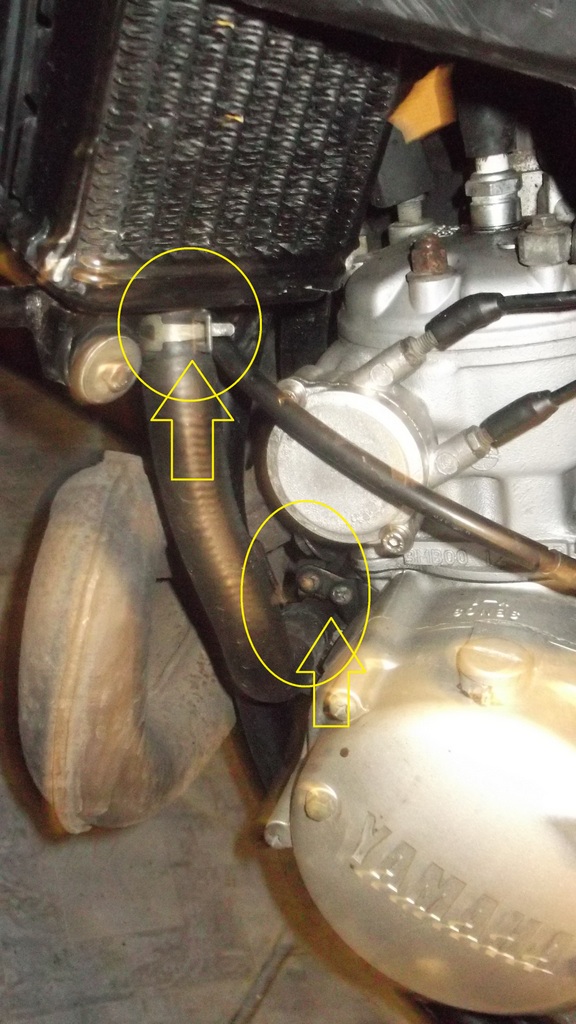

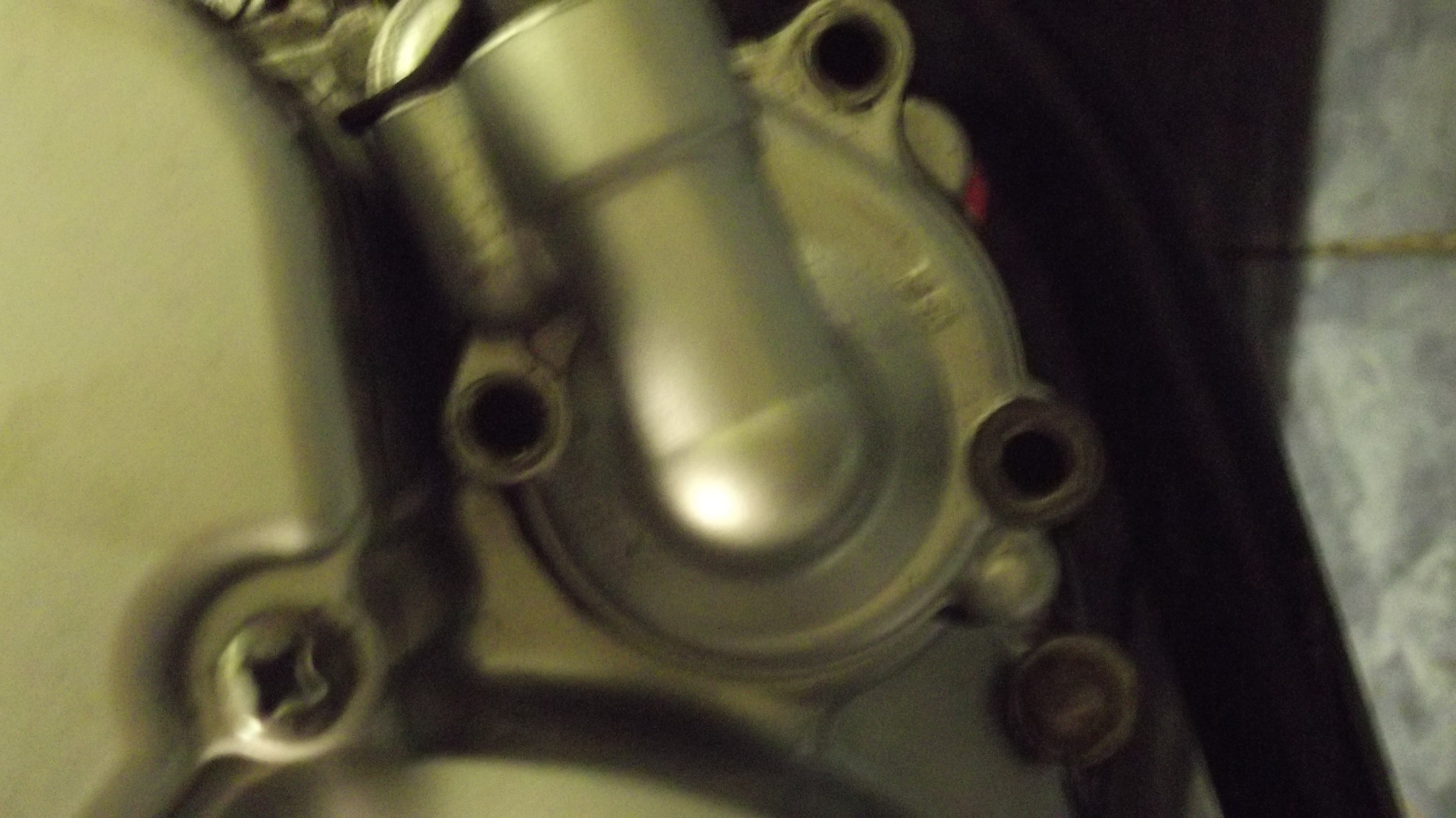

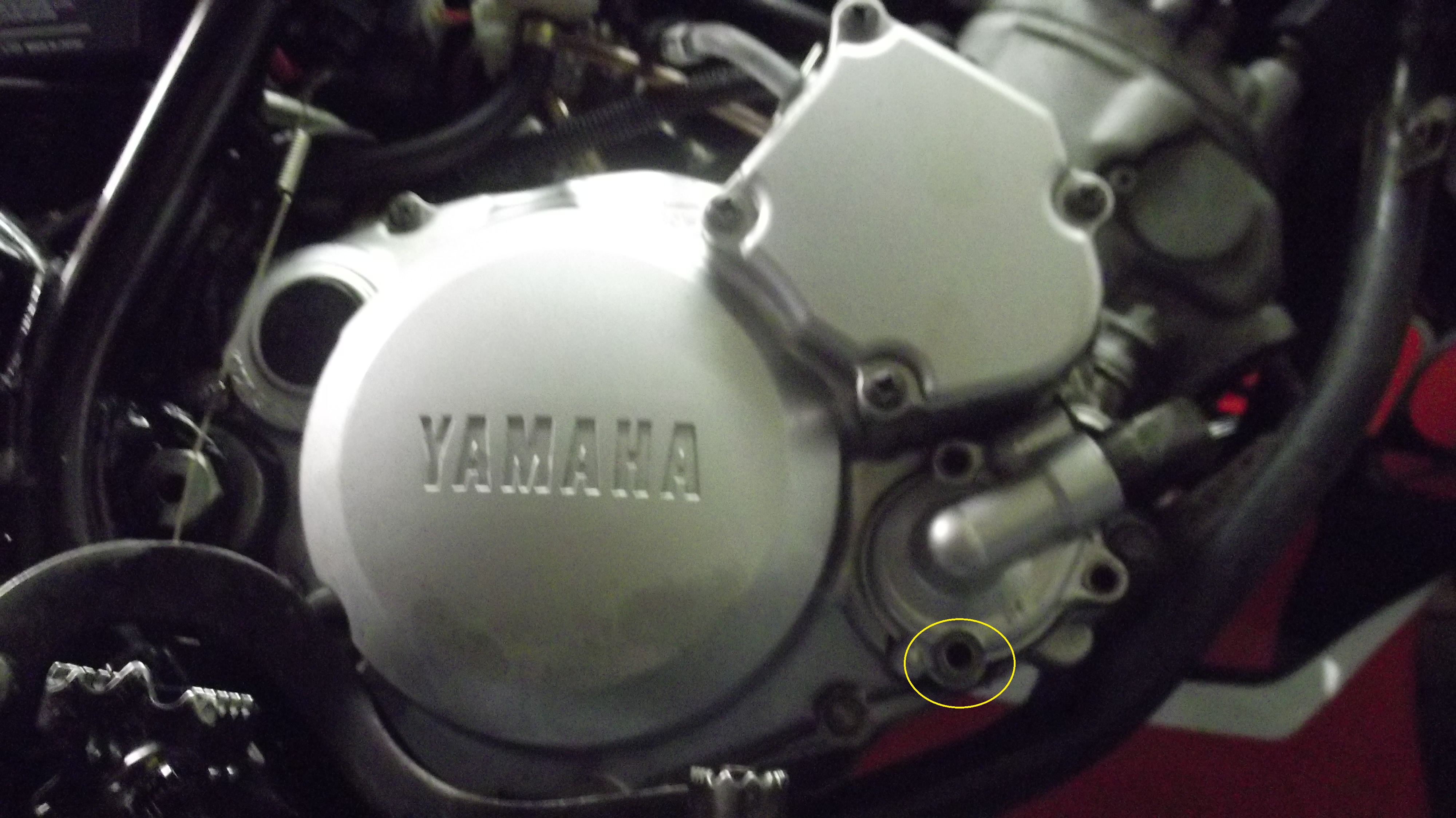

    Drain the coolant by unscrewing the drainage bolt and undoing the radiator cap. Detatch radiator hose from radiator tank. Attached the hose is a metal pipe that runs from the radiator to the water pump. Unscrew this as this will help when reinstalling the gearbox case. Examine picture to find cooland sump:

    0_1502726567533_Coolant Sump.jpg

    0_1502726589856_Cooland pipe.jpg

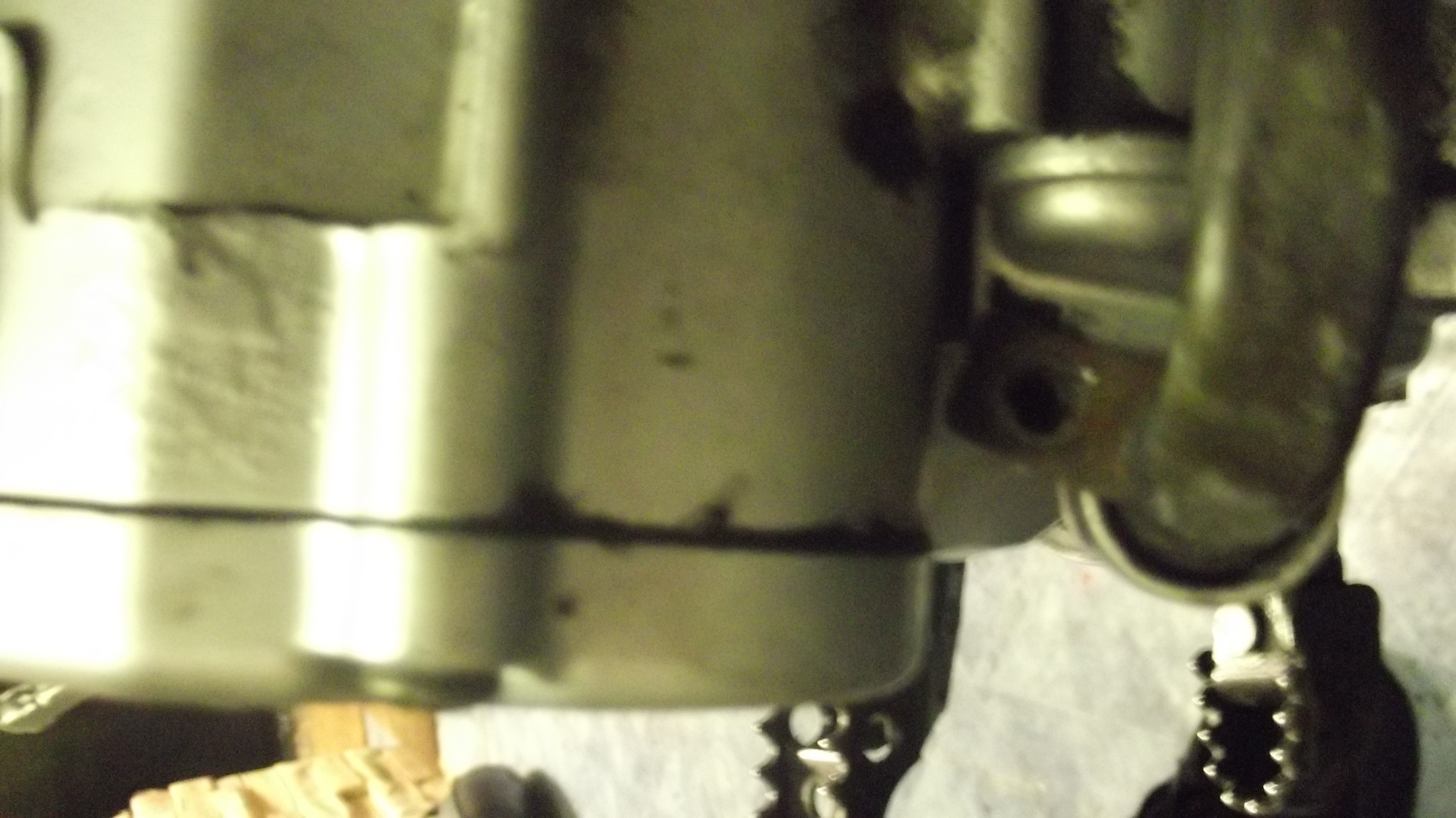

    Drain the gear box oil by unscrewing the oil drainage sump

    Loosen all case fasteners then remove all screws. Its a good idea to replace these bolts for stainless steel ones as I managed to round most mine off!

    I buy all my stainless bolts from ebay.

    Buy a range of M6 bolts and the drainage bolt is M8. I recommend kayfast as an ebay seller.

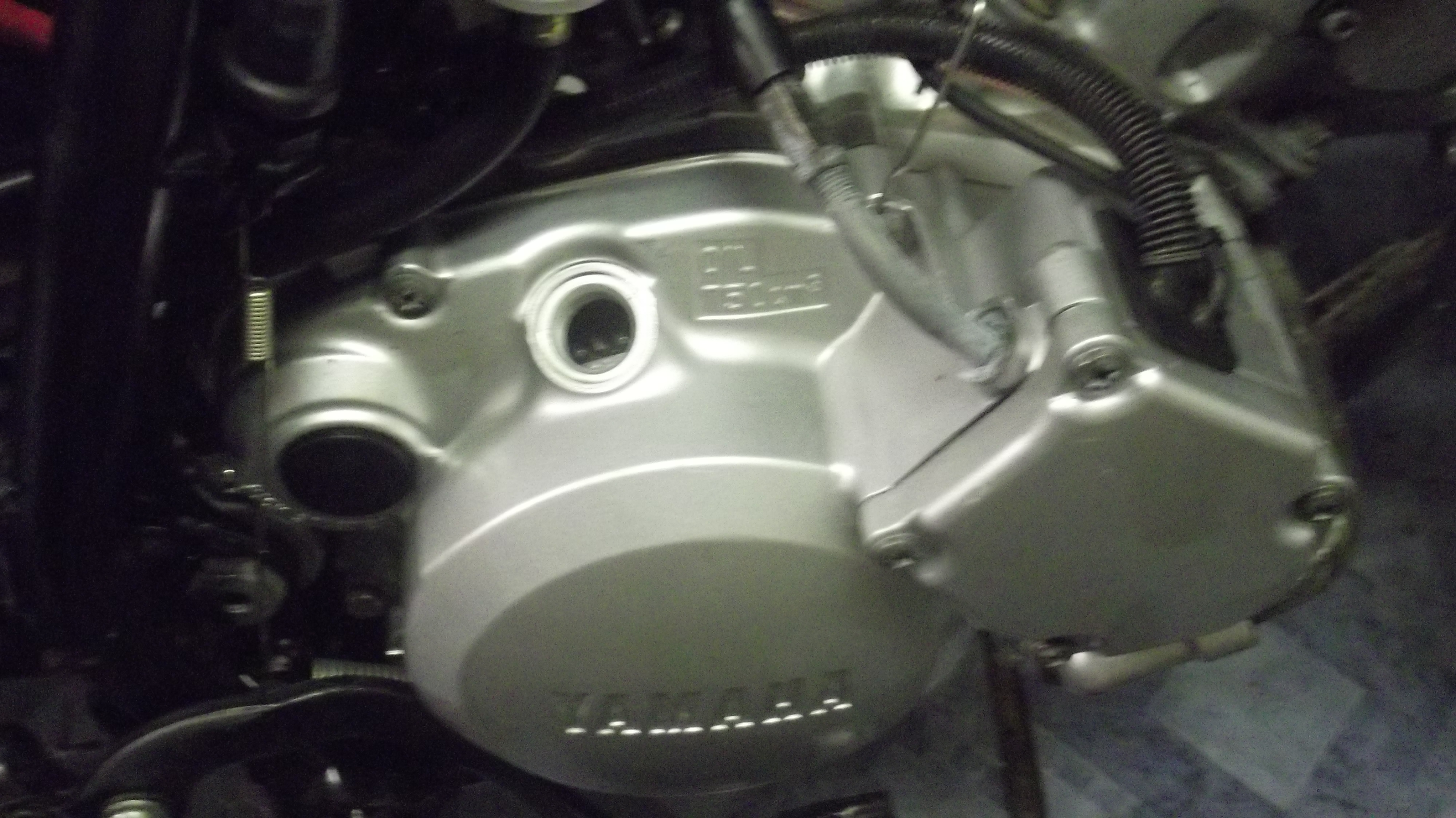

    Remove the gearbox casing. If this is being stubborn try tapping its sides with a hammer whilst still pulling back on the casing. Avoid using a flat blade as leverage as this may damage the casing itself. If the closing isnt completely flush then oil may seep through when reassembled. Once the casing has been removed the gasket may be taken off. You can use this gasket as a template to create your new one or discard it as you may have purchased one.

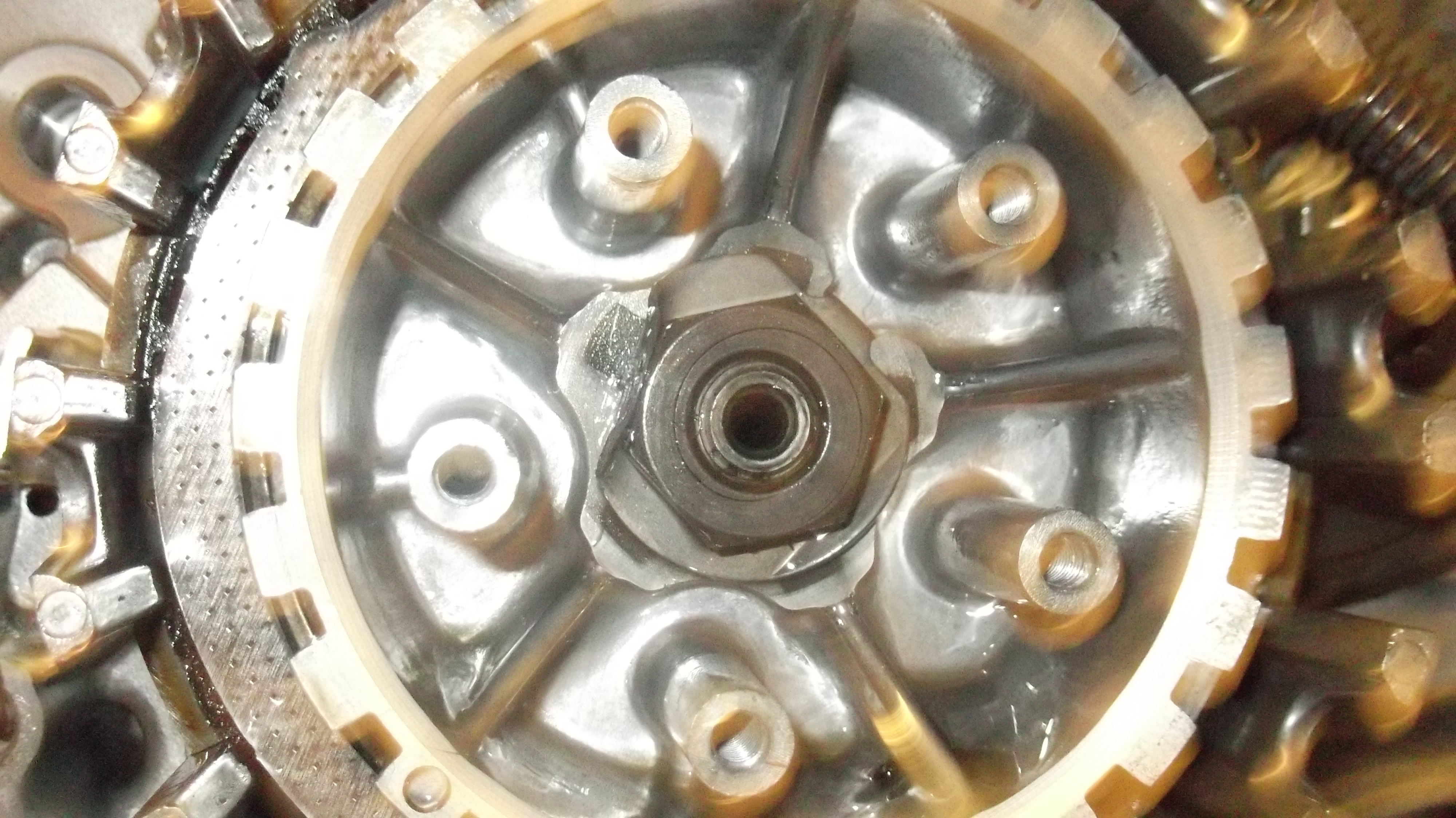

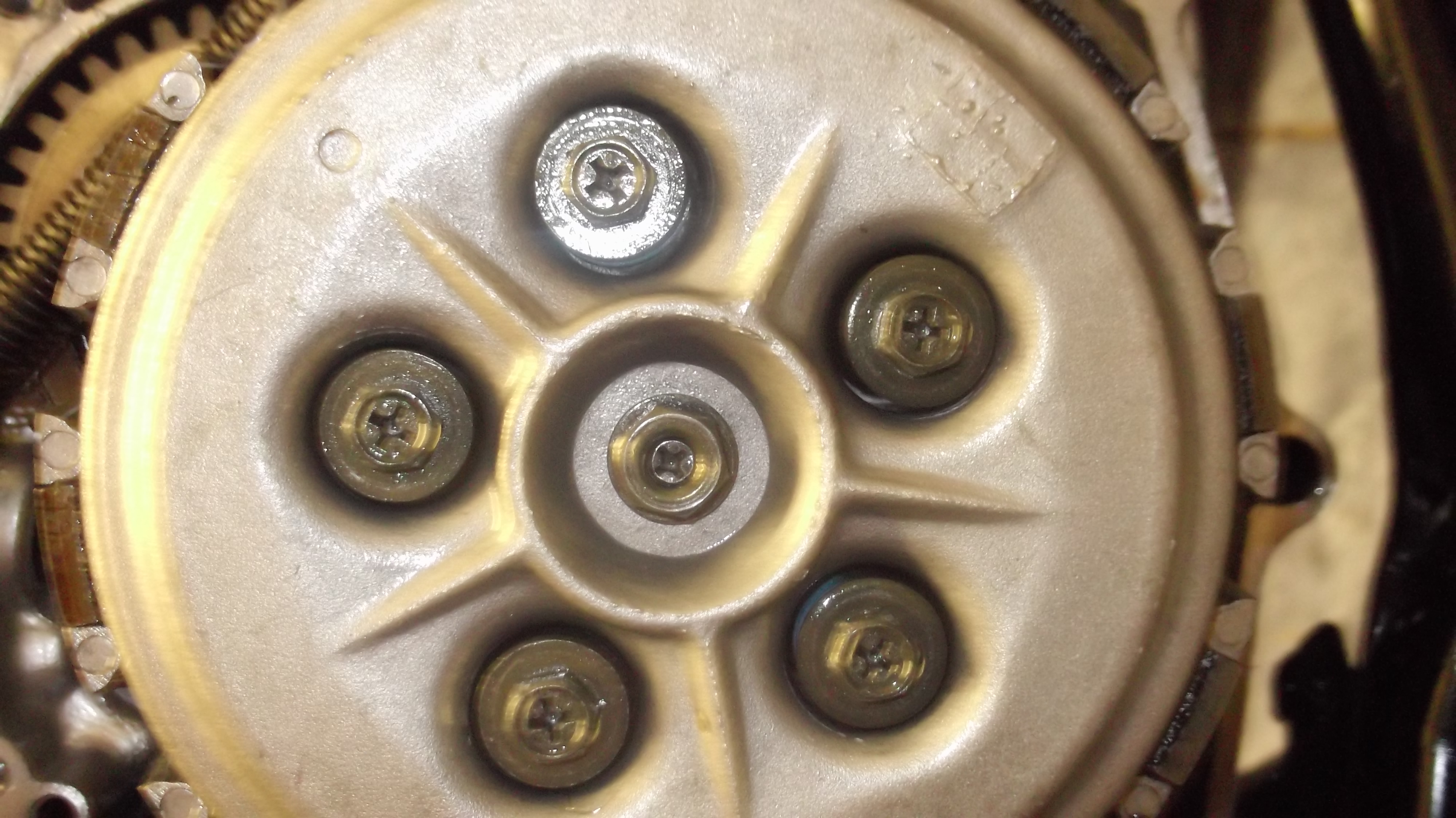

    Evenly unscrew the clutch springs in a diagonal pattern. DO NOT UNFASTEN ONE WITHOUT UNFASTENING THE OTHERS. Like I said evenly unscrew each clutch spring in a diagonal pattern. It may help to leave the push rod as it is. Remove the clutch pressure plate. Be careful when removing the push rod as a small ball bearing may fall out which is required when reassembly. If it does fall out then re-grease it and return it to the centre of the clutch. Grease up the push rod. Remove the clutch plates and friction plates HOWEVER MAKE SURE THE ORDER REMAINS THE SAME UPON REFITTING!!! You should note that the washer is bent up to the nut. This is normal and will need to be hammered down before the nut can be removed. By using a socket and ratchet remove the nut. The longer the ratchet the better Leverage is your friend.


    This nut can be VERY STUBBORN and some improvisation may be required for it to come off. The problem is is that the clutch basket spins as you try to remove the bolt. By using a piece of long metal you could drill through it and secure it to the clutch pillars and add a counter force to it to allow you to release the nut. Or the tool can be used.

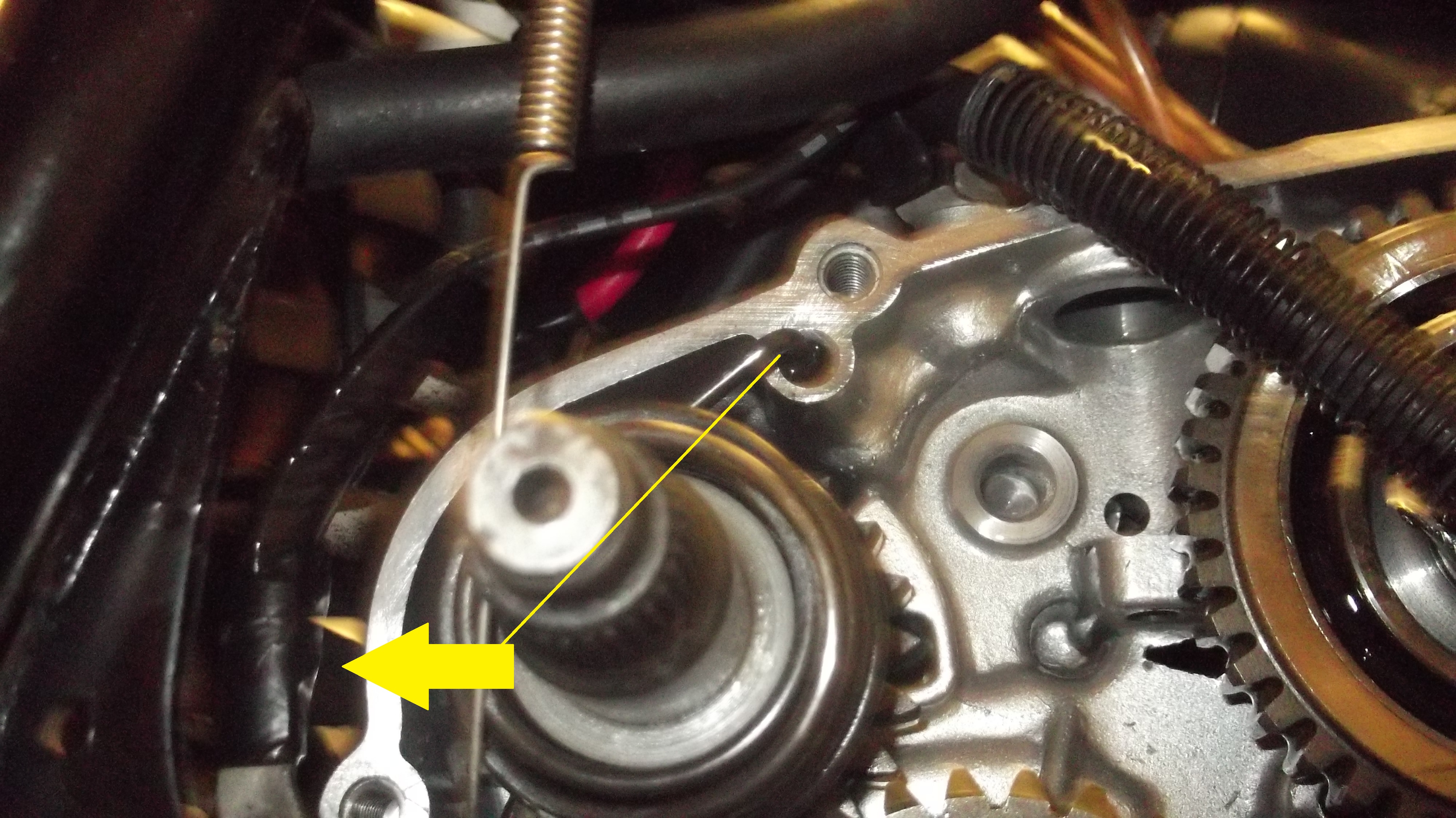

    Once this nut has been removed the clutch basket can come off. It may seem stubborn as the cogs it sits between are curved. By rotating the basket and pulling you can remove the basket. The kick start mechanism can now be installed. By examining the photos install the kick start mechanism. The cog should lift as it rotates so it can engage with the idle gear.

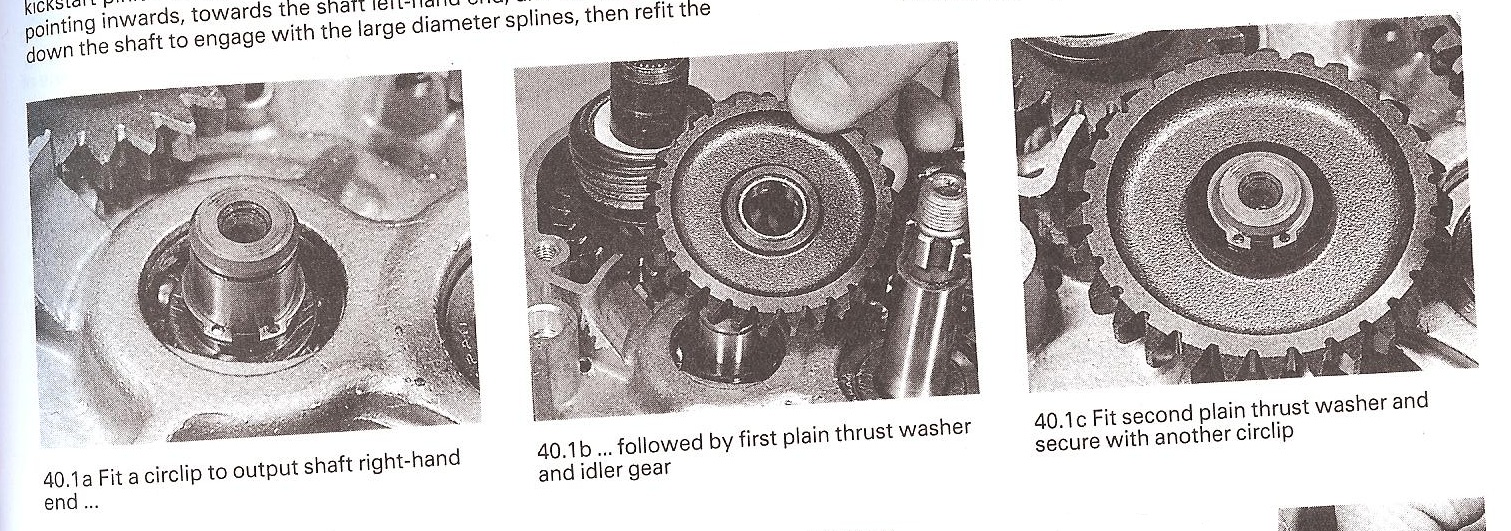

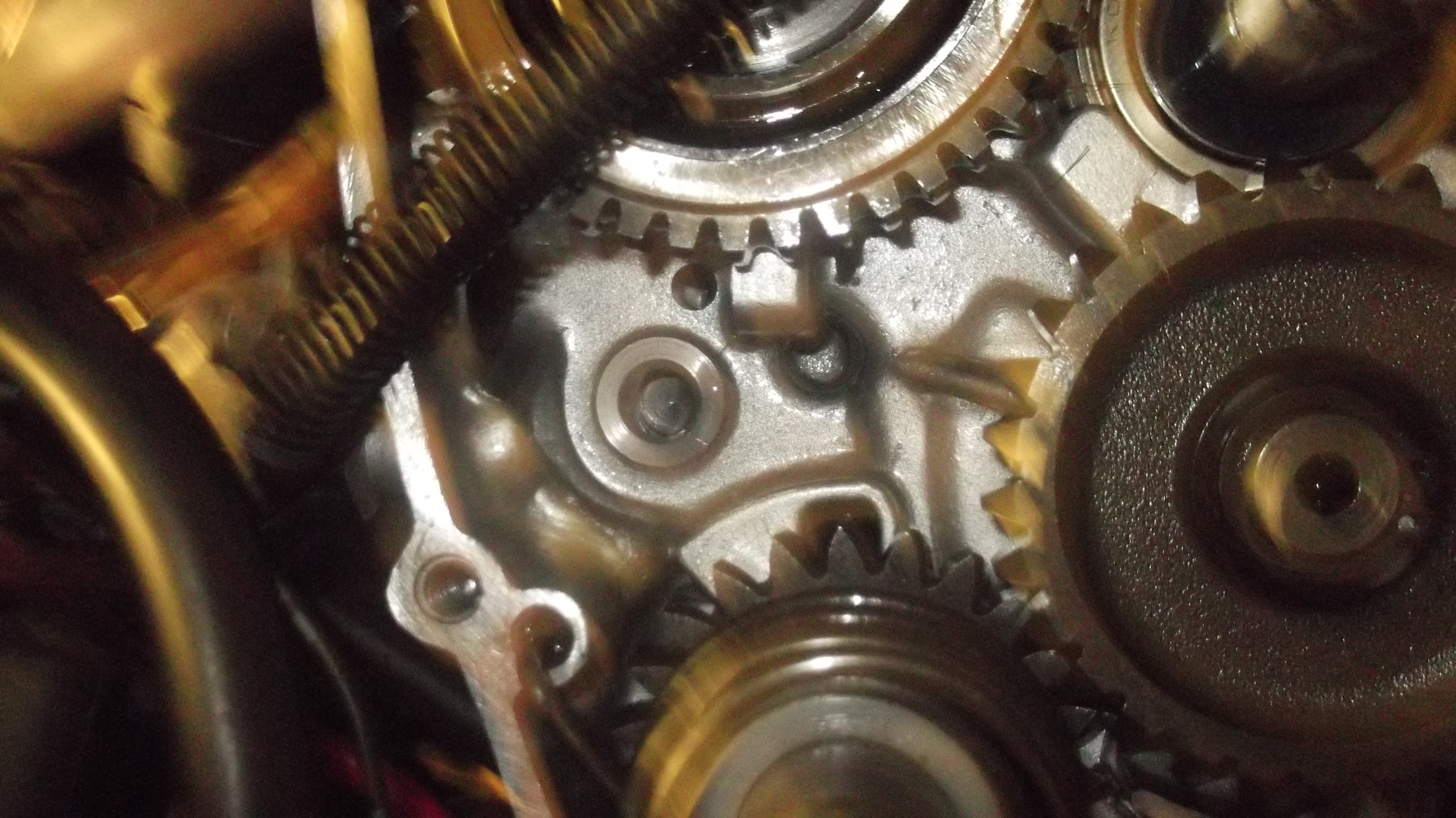

    An exposed beam next to the kick Start mechanism can now be reached. Install the first circlip to this beam, followed by; a washer, the idle gear, the second washer and the final circlip. The idle gear should sit firmly on the beam. Should there be any play side to side I have been told that it shouldnt matter as there wont be a load on the cog when the engines running so it shouldnt be too much trouble. The clutch basket should be inspected for any burs or signs of wear. The friction plates should be examined for any signs of blueing. This will indicate overheating inside the clutch. Also inspect the steel ball to ensure there are no flat spots. Inspect the push rods to make sure they are not bent.

    See diagram:

    0_1502726748375_Idle Gear.jpg



    0_1502726808395_Kick Start Mechanism.jpg

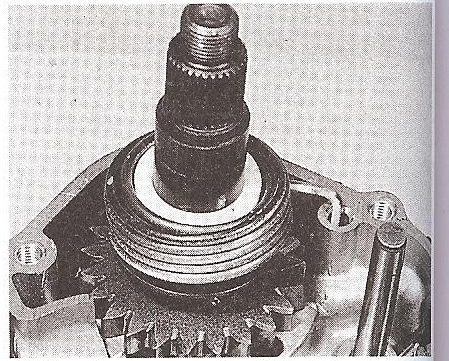

    See haynes diagram:

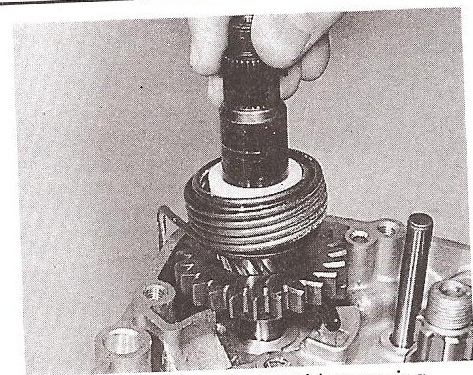

    0_1502726849623_Kick Start Placement.jpg

    0_1502726860008_Kick start Placement 2.png

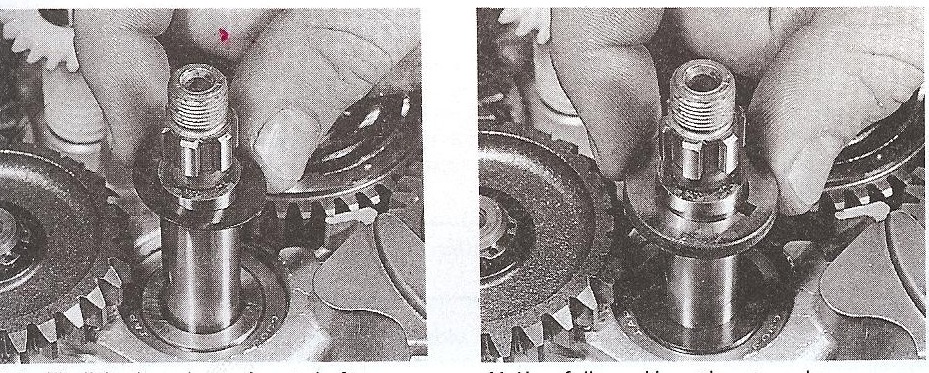

    Once satisfied that parts can now be installed reinstall the clutch basket using the same method you used to dismantle it. If you took the washers off then install thrust washer first followed by the splined one. See diagram below if unsure:

    0_1502726872526_Washer Placement.jpg

    Make sure that the idle gear connects with the primary gear and that the kick start engages the idle gear. Once that is satisfactory you may now start to install the clutch plates. When doing so inspect the clutch plates to ensure there is plenty of life in them. If not its best to replace the set.

    When installing the clutch plates notice how one clutch plate has a larger internal diameter than the others. This clutch plate must be installed second, followed by the damper ring and then the friction plate. Also upon installation notice how the plain plates have a cutaway in them. This makes them unbalanced and the clutch will need to be rebalanced should it to work correctly. They should be equally spaced out by 60o so that it is balanced. Apparently this is done to reduce clutch noise!

    A list of how the clutch should be assembled for reference:
    Friction plate,
    Plain plate (metal) 12 o'clock,
    Friction plate with damper ring,
    Plain plate (metal) 2 o'clock,
    Friction plate,
    Plain plate (metal) 4 o'clock,
    Friction plate,
    Plain plate (metal) 6 o'clock,
    Friction plate,
    Plain plate (metal) 8 o'clock,
    Friction plate,
    Plain plate (metal) 10 o'clock,
    Friction plate,

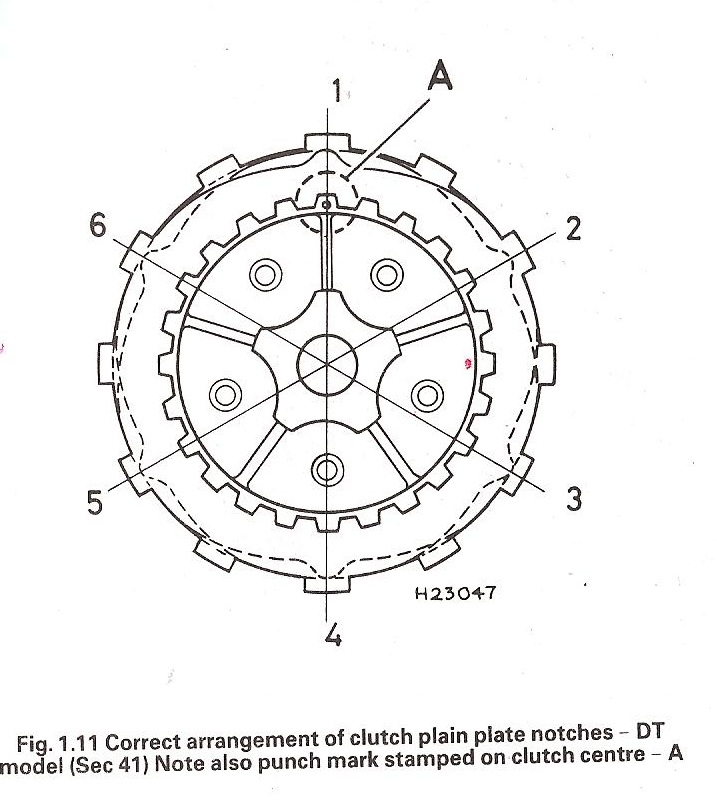

    Or see the Haynes manual picture:

    0_1502726884809_Clutch Placement.jpg

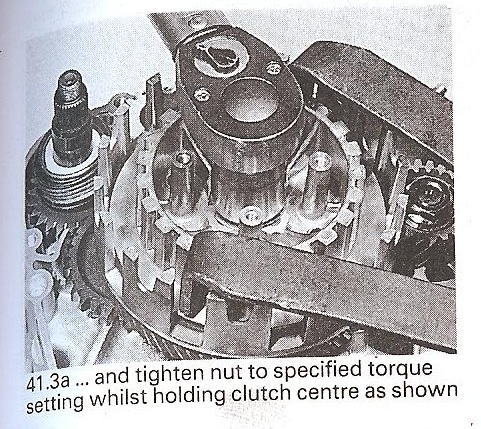

    When installing the clutch springs ensure that they are with the handbook specified relax length. If not then the whole lot should be replace. When installing them do as you did when removing them and tighten them equally in diagonals until all are tight. Ensure that the push rod is secured in its place and make sure that the punched mark on the pressure plate sits above punched mark on the basket. This punched mark may also be an arrow. See Haynes diagram if unsure:

    0_1502726904451_Clutch Installment.jpg

    Go to the casing. Where it says Kick starter that seal must be removed. By using a socket, pressure can be applied to its reversed side and hammered out of place. Install the new oil seal using a tool that only bears against the outer surface, a socket of the same diameter will do. Replace the gearbox case to the bike ensuring that the alignment dowels are in place and that the new gasket is fitted. Ensure it lines up correctly and fasten up to the engine ensuring not to over tighten and cross thread or snap the bolts. If the oil pipe has been removed then this will need to be bled again.

    Install the kickstart lever and bolt and the kick start should now be working!

    0_1502726922782_Kick Start Placement.jpg

    Remember to top up the gearbox oil, 750ml and to refill the coolant. It's a good idea to leave the bike ticking over with the radiator cap off to allow water to be pumped through the system and then add more coolant as it circulates around the engine.

    If there are any problems with this tutorial or corrections that need to be made or rewording of any sort then please leave a comment so I can correct it.

    I hope this helped thanks!

    Sources:

    Haynes Manual, Personal Experience, XGINCATX, NORFE

    ##24/06/15

    Wow I wrote this tutorial back in 2012 and was one of the first modifications I done to my DT. It got me out the shit more times than I care to remember and is well worth doing should you be considering it for your own machine. This document I have referred to in the past, and now I am much more experienced, I can say it is correct.
