The Helios Project (Aprilia RS 125 Rotax 122 Biaggi Race Replica)

Scheduled Pinned Locked Moved Other
312 Posts 22 Posters 119.4k Views
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • CalumC Online
    CalumC Online
    Calum
    wrote on last edited by Calum
    #1

    The Kids Are Alright and so are these bikes.

    Ever since a good friend of mine rocked up to my house on a 2001 Aprilia RS50, I knew that one day, I too would own something as cool as that. Too true this was as well, only a few months later did I take delivery of a low mileage 2007 Aprilia RS50 Spains No 1 Race Replica.

    I always wanted the bigger, 125 variant, but at the time I simply couldn't afford one. Besides that, I ended up getting a DT 125 anyway.

    Project Video
    https://youtu.be/w9qXS3V04VM

    Max Biaggi Race Replia

    Always Originate, Never Pirate!

    1 Reply Last reply
    2
    • CalumC Online
      CalumC Online
      Calum
      wrote on last edited by Calum
      #2

      Rebooted this thread.
      But that feeling never left me, so in December 2015 I imported an RS125 into the UK.

      alt text

      Well I say an RS125, what I mean is a frame that was originally an RS125.

      So here I started, my Superteen RS 125 Road Racer build.

      It's a 2007 Spains No 1, but I will be building this bike in homage to Max Biaggi, and as such, I will be going with his Livaries. It'll be white, with touches of red.

      I will finally be building this bike from the ground up. Everything I buy, will be repaired, painted and fixed onto this frame. Starting with the swinging arm.

      alt text

      alt text

      I spent hours, hand buffing the deep scratches and dents out of this rear arm.

      The rear suspension linkage was completely shot and needed overhauling.

      alt text

      alt text

      Like the DT, I'm going with Candy Red for my paint colour. The photos don't do it justice. It's an eye popping colour, and when offset with the white, it goes really well.

      alt text

      I've gone with Gloss White for the contrast colour.

      The swingarm was stripped of all its bearings and bushes. Replaced with new OEM counterparts.

      I've gone with a high weave, carbon fibre rear hugger and chain guard. I'm using aluminium paddock bobbins to grant me access to maintenance when the item is pieced together. Also titanium chain adjusters.

      alt text

      alt text

      alt text

      alt text

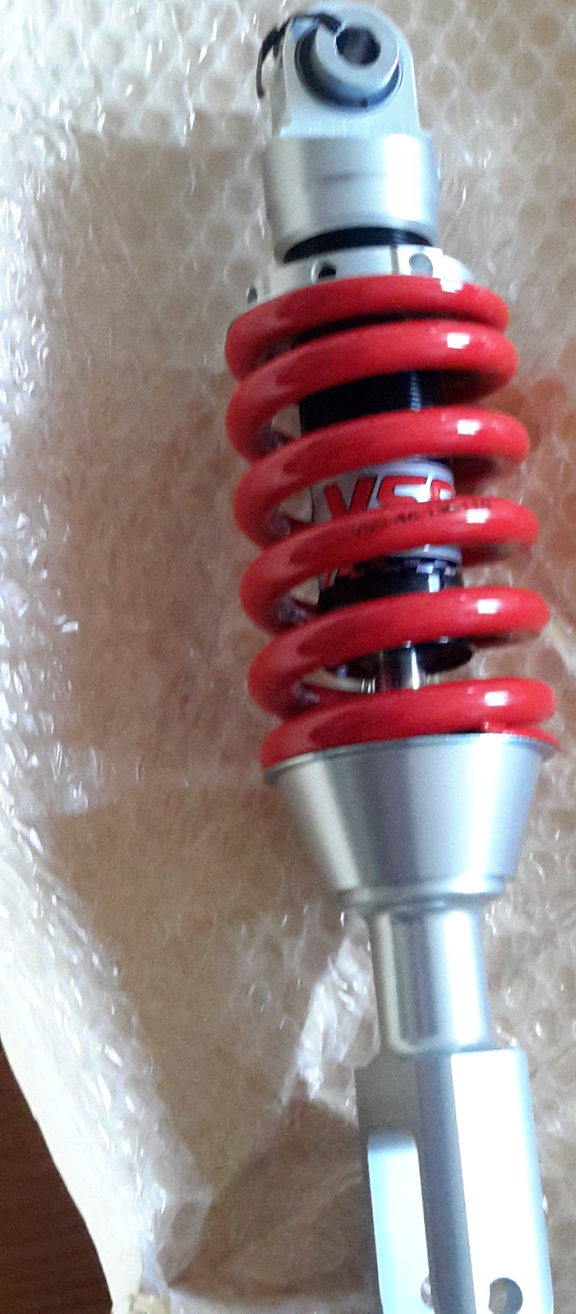

      The shock has been replaced with a superior YSS unit. It's fully adjustable with an internal reservoir. Sorry but I couldn't justify the price for the external reservoir ones. Especially as I only intend on using this bike a couple of times a year. Who'd have thought white would be hard to keep clean lol

      alt text

      It's better than stock, but it isn't quite SuperTeen Standard. But I want this bike on the road by the summer, so I will make some sacrafices. I can always replace this later.

      The sticky rubber that I've chosen is a pair of Diablo ROSSO II

      alt text

      These were by no means cheap, but were near enough the best that you can get for the road for these bikes. Not great in the wet, but this is totally a Blue Skies Sunny Day Bike!

      alt text

      The core components I got done in candy red. You won't see the subframe, the frame will be shown behind the fairings, and the wheels will of course be on display. So whilst it looks like a sea of red now, most of it will be hidden, and only you sneaky little devils on the forum will see its true form.

      alt text

      alt text

      I manage to snag a set of clocks with a measily 1.5k miles on. Although to be fair, I really don't care for mileage.

      alt text

      I got the rear linkage fully rebuilt with new bushes and bearings and seals. All resprayed.

      alt text

      And of course, packed full of grease.

      New grommets, bushes and a respray for even the smallest of components, the fuse holder.

      alt text

      Fitted to the battery bracket.

      Which again, stripped painted and new grommets.

      alt text

      alt text

      The devil is in the detail after all.

      These bikes didn't half come with some stopping power.

      Aprilia built savage four pot radial caliper for the front. With a nice dual pot rear caliper. But the pair I got needed an overhaul.

      alt text

      For this, powdercoating can damage the integrity of the brakes. No fancy colours here, these items are exposed and a damn nuisance to clean. I'm simply going for a rebuilt, Titanium split pins and brembo pads.

      alt text

      alt text

      alt text

      I split and rebuilt them. Clean up all the rust and muck, sprayed Matte black to allow brake dust and dirt to simply blend into the paint work. No not the best but hey, noone's perfect lol.

      Don't need these for the moment. They can stay in storage.

      alt text

      I got a set of forks, that needed a rebuild. Don't know where the photos are for this, which is a shame. But again, fully stripped and all genuine parts replaced. New Silkolene fork oil and lovely anodised aluminium red fork top caps. All ready to fit to the frame.

      alt text

      I need a few more components, then I can assemble the rolling chassis. I aim to have the rolling chassis complete February. Awaiting funds....

      At the heart of any rolling chassis is the engine. Now I know what I would like to do with this project, Rotax 257 engine transplant. But instead I'm opting for the SuperTeen Engine, Rotax 122. Very capable engines used throughout the Go-Kart Juniors. Lots of tuning parts available for these engines and very capable of that golden 33BHP mark on road fuel. I'm not saying mine will get that much power, but high twenties would be nice.

      alt text

      alt text

      Here it is then.

      Looking a little worse for wear I'll admit.

      alt text

      alt text

      alt text

      Let us first examine barrel.

      Unlike the DTR, this engine is cylinder inducted (similar to YZ's)

      alt text

      The engine utilises Rotax's appropriately named RAVE (Rotax Adjustable Valve Exhaust)

      alt text

      Similar to Yamaha's YPVS system, the RAVE setup uses a cutaway blade to adjust the port height. It is attached to a piece of wire, which is fastened onto the chassis. The wire is pulled using a solenoid, controlled by a separate ECU.

      alt text

      The transfers on this thing are HUGE, and the exhaust benefits from two axillary ports.

      The engine relies on the Japanese to keep it lubricated

      alt text

      alt text

      But once again, I intend on having this engine ported so my reliance on the pump is not needed.

      alt text

      Like the DT, the oil pump and water pump are both driven from Nylon cogs.

      alt text

      Unlike the DT however, the primary shaft and balancer shaft are also driven by nylon cogs. When this engine is shifting at 14,000 RPM making 30+ bhp, these are so prone to failure. So these will be replaced with new when the time comes.

      With all this power, the clutches are also prone to slip. So this will be uprated when the time comes also.

      alt text

      alt text

      alt text

      alt text

      Oh dear, this engine is unfortunately scrap!

      alt text

      alt text

      alt text

      Unfortunately, even the other side suffered, so the crankcases were thrown in the bin. I promptly received a partial refund (enough to buy another set of cases).

      alt text

      Only the finest components were used on the rebuild. A new set of cases ordered. professionally cleaned and returned. I then went away and renewed the crank case bearings.

      alt text

      alt text

      With the connecting rod having gone through the crankcases. The whole gearbox needs stripping, inspecting and rebuilding. Unfortunately there are some 8 8mm needle bearings. At £20 each I haven't justified buying them just yet. As such, the cases have been in storage ready for the crank and gearbox rebuild. I intend on rolling the chassis before building the engine. With the chassis nearing completion, it'll soon be time to resurrect the engine rebuild.

      Always Originate, Never Pirate!

      1 Reply Last reply
      1
      • O Offline
        O Offline
        oldman
        wrote on last edited by
        #3

        Nice one Calum, those wheels look terrific

        CalumC 1 Reply Last reply
        1
        • O oldman

          Nice one Calum, those wheels look terrific

          CalumC Online
          CalumC Online
          Calum
          wrote on last edited by
          #4

          @oldman They look better with the rubber on, better contrast between the red you see.

          I'm just waiting on spacers so I can fit it into the swingarm, which should look really nice.

          Always Originate, Never Pirate!

          Irongamer727I 1 Reply Last reply
          1
          • CalumC Calum

            @oldman They look better with the rubber on, better contrast between the red you see.

            I'm just waiting on spacers so I can fit it into the swingarm, which should look really nice.

            Irongamer727I Offline
            Irongamer727I Offline
            Irongamer727
            wrote on last edited by
            #5

            @calum what do you think is the maximum output for a tuned rotax 122? 45 hp+?

            CalumC 1 Reply Last reply
            0
            • Irongamer727I Irongamer727

              @calum what do you think is the maximum output for a tuned rotax 122? 45 hp+?

              CalumC Online
              CalumC Online
              Calum
              wrote on last edited by
              #6

              @irongamer727 On race fuel with countless thousands spent on it. Maybe.

              Pump gas, I'd say 33-35. GP bikes probably just shy of 40.

              But then remember it's not all about peak power. Power is no good without torques. And this, whilst being superteen imititated, is meant for the road, where torque is so much more important.

              So, whilst I will be getting the engine ported, it'll be for road tune.

              Always Originate, Never Pirate!

              1 Reply Last reply
              0
              • terry.tzT Offline
                terry.tzT Offline
                terry.tz
                wrote on last edited by
                #7

                45+ no chance best I saw online is 45 bhp by some crazy guy with no sense and too much money he was from Italy I think I can't find any info on it anymore shame not that anyone would do the same unless they were rich and enjoyed rebuilding it daily

                but people get 28 bhp all the time 35 has been reached by many

                she looks a stunner in bits beautiful bikes swing arms are a piece of art thank god you didn't follow the crowd and polished it I found that Continentals Conti Attack 2 feel better on rs duo to the bike being so light the angle helps in corners and there great in the wet to maybe give them a go on your next set

                looking forward to seeing progress

                "Muddy water is best cleared by leaving it alone" Alan Watts

                CalumC 1 Reply Last reply
                1
                • terry.tzT terry.tz

                  45+ no chance best I saw online is 45 bhp by some crazy guy with no sense and too much money he was from Italy I think I can't find any info on it anymore shame not that anyone would do the same unless they were rich and enjoyed rebuilding it daily

                  but people get 28 bhp all the time 35 has been reached by many

                  she looks a stunner in bits beautiful bikes swing arms are a piece of art thank god you didn't follow the crowd and polished it I found that Continentals Conti Attack 2 feel better on rs duo to the bike being so light the angle helps in corners and there great in the wet to maybe give them a go on your next set

                  looking forward to seeing progress

                  CalumC Online
                  CalumC Online
                  Calum
                  wrote on last edited by
                  #8

                  @terry-tz Hey cheers mate.

                  You know what, I have been looking at builds and have been told that I should have polished it. It's nice to hear you think otherwise.

                  I know keeping it clean is going to be a nightmare. But I really think it's a once or twice a year bike so it shouldn't be too hard to keep it mint.

                  Yeah, also note that different dynos give different readings. I think what really matters is how it performs out on the road, for a road bike that is.

                  Always Originate, Never Pirate!

                  terry.tzT 1 Reply Last reply
                  1
                  • CalumC Calum

                    @terry-tz Hey cheers mate.

                    You know what, I have been looking at builds and have been told that I should have polished it. It's nice to hear you think otherwise.

                    I know keeping it clean is going to be a nightmare. But I really think it's a once or twice a year bike so it shouldn't be too hard to keep it mint.

                    Yeah, also note that different dynos give different readings. I think what really matters is how it performs out on the road, for a road bike that is.

                    terry.tzT Offline
                    terry.tzT Offline
                    terry.tz
                    wrote on last edited by
                    #9

                    @calum agreed follow me so I can message you it came up with an error

                    "Muddy water is best cleared by leaving it alone" Alan Watts

                    1 Reply Last reply
                    0
                    • terry.tzT Offline
                      terry.tzT Offline
                      terry.tz
                      wrote on last edited by
                      #10

                      wash every time you use most probably

                      "Muddy water is best cleared by leaving it alone" Alan Watts

                      1 Reply Last reply
                      0
                      • CalumC Online
                        CalumC Online
                        Calum
                        wrote on last edited by Calum
                        #11

                        Chipping a little more off, but money is tighter than I was expecting.

                        Got some lovely bits in the post, but can't use them just yet.

                        alt text

                        Light weight Carbon Fibre sprocket cover. For an engine that is no where near built.

                        Light weight captive wheel spacers, some 100 grams lighter than the original, well every little helps.

                        alt text

                        As said, forgot to grab the photos of the wheels with rubber, helps the camera pick up the actual colour of the wheels.

                        alt text

                        I get it won't be to everyones taste, that's fine.

                        Rear linkage mated to the dog bones.

                        alt text

                        Counter sunk stainless steel hex head bolts for the seat lock. Won't be seen but at least I know it's fresh!
                        alt text

                        Battery box fitted to the brackets. Very snug fit with those new grommets.

                        alt text

                        All fitted to the frame using high quality titanium bolts.

                        alt text

                        The rolling chassis so far!

                        alt text

                        It's getting close to being able to wheel it into and out of the garage.

                        Always Originate, Never Pirate!

                        terry.tzT 1 Reply Last reply
                        3
                        • CalumC Calum

                          Chipping a little more off, but money is tighter than I was expecting.

                          Got some lovely bits in the post, but can't use them just yet.

                          alt text

                          Light weight Carbon Fibre sprocket cover. For an engine that is no where near built.

                          Light weight captive wheel spacers, some 100 grams lighter than the original, well every little helps.

                          alt text

                          As said, forgot to grab the photos of the wheels with rubber, helps the camera pick up the actual colour of the wheels.

                          alt text

                          I get it won't be to everyones taste, that's fine.

                          Rear linkage mated to the dog bones.

                          alt text

                          Counter sunk stainless steel hex head bolts for the seat lock. Won't be seen but at least I know it's fresh!
                          alt text

                          Battery box fitted to the brackets. Very snug fit with those new grommets.

                          alt text

                          All fitted to the frame using high quality titanium bolts.

                          alt text

                          The rolling chassis so far!

                          alt text

                          It's getting close to being able to wheel it into and out of the garage.

                          terry.tzT Offline
                          terry.tzT Offline
                          terry.tz
                          wrote on last edited by
                          #12

                          @calum she is becoming a beauty

                          "Muddy water is best cleared by leaving it alone" Alan Watts

                          CalumC 1 Reply Last reply
                          1
                          • terry.tzT terry.tz

                            @calum she is becoming a beauty

                            CalumC Online
                            CalumC Online
                            Calum
                            wrote on last edited by
                            #13

                            @terry-tz Cheers mate 😄

                            Long way off anything being anything yet.

                            Always Originate, Never Pirate!

                            1 Reply Last reply
                            1
                            • O Offline
                              O Offline
                              oldman
                              wrote on last edited by
                              #14

                              That's better! Those wheels look tremendous, a man after my own heart! Also replace bolts and fixings with quality even when they will never been seen, will be one of a kind completed.

                              CalumC 1 Reply Last reply
                              1
                              • O oldman

                                That's better! Those wheels look tremendous, a man after my own heart! Also replace bolts and fixings with quality even when they will never been seen, will be one of a kind completed.

                                CalumC Online
                                CalumC Online
                                Calum
                                wrote on last edited by
                                #15

                                @oldman Unfortunately, one of a kind, it will not be.

                                As said, these bikes are used for the Junior Moto GP racing, or were used rather (replaced with four strokes today).

                                So these bikes tend to get built to an exceptionally high standard. I don't have those sorts of deep pockets, but I will do my best where I can. It'll be SuperTeen Inspired for sure 😄

                                I just need the right sized circlip for the front wheel then I can put the forks and swingarm on.

                                Hopefully next weekend.

                                Always Originate, Never Pirate!

                                1 Reply Last reply
                                0
                                • CalumC Online
                                  CalumC Online
                                  Calum
                                  wrote on last edited by Calum
                                  #16

                                  A few little bits arrived for me today.

                                  I got this exact disc on my DT. It was absolutely lovely, and was £60 cheaper than what I paid for it, so I jumped at the opportunity.

                                  alt text

                                  alt text

                                  All fitted to the wheel using Titanium bolts.

                                  alt text

                                  Genuine handle bars and switch gear arrived. Plus Titanium wheel nuts and aluminium fork top.

                                  Thinking of getting the handle bars painted, to contrast the white triple clamps. Then I can look to assemble it. Got some titanium handlebar bolts with these as well.

                                  I've also redone the swingarm bolts with titanium, which was expensive. But it feels nice to chuck the money into this vehicle as it'll be a real nice sunny ride.

                                  Although, I totalled the cost of the remaining parts, the price is eye watering. I think you could have bought two of these bikes brand new from Aprilia for the cost that this one is looking at. But of course, this will be far superior spec.

                                  Always Originate, Never Pirate!

                                  1 Reply Last reply
                                  1
                                  • MightymanM Offline
                                    MightymanM Offline
                                    Mightyman
                                    wrote on last edited by Mightyman
                                    #17

                                    @calum only a few emojis seem to be working ⌨ 😂

                                    EDIT: nevermind, they are now :thinking:

                                    TDR 125 - 2001

                                    1 Reply Last reply
                                    0
                                    • CalumC Online
                                      CalumC Online
                                      Calum
                                      wrote on last edited by
                                      #18

                                      @irongamer727 0_1515853458962_2018-01-13 03.23.49.jpg

                                      Works fine for me.

                                      You have to give it a while. It uploads it to my server, which uploads it to imgur and then embeds the link. So just because it says 100 percent that just means you have uploaded it to my server

                                      Always Originate, Never Pirate!

                                      1 Reply Last reply
                                      0
                                      • Irongamer727I Offline
                                        Irongamer727I Offline
                                        Irongamer727
                                        wrote on last edited by
                                        #19

                                        @calum where do you buy all of your titanium screws? Ebay presumably, but from whom?

                                        CalumC 1 Reply Last reply
                                        0
                                        • Irongamer727I Irongamer727

                                          @calum where do you buy all of your titanium screws? Ebay presumably, but from whom?

                                          CalumC Online
                                          CalumC Online
                                          Calum
                                          wrote on last edited by
                                          #20

                                          @irongamer727 Company called raceti

                                          Always Originate, Never Pirate!

                                          1 Reply Last reply
                                          0
                                          Reply
                                          • Reply as topic
                                          Log in to reply
                                          • Oldest to Newest
                                          • Newest to Oldest
                                          • Most Votes


                                          • Login

                                          • Don't have an account? Register

                                          • Login or register to search.
                                          • First post
                                            Last post
                                          0
                                          • Recent
                                          • Tags
                                          • Popular
                                          • Users
                                          • Groups
